Technical Details

• Max Book Size: 320 mm (spine length) x 400 mm
• Min Book Size : 80 mm (spine length) x 50 mm
• Max Cover Size 320 mm (spine length) x 838.2 mm
• Max Binding Thickness : 40 mm
• Glue Warm-up: 25 minutes
• Glue Warm-up in Stand-by Mode: 5 minutes
• Cycle Speed : Up to 360 cycles per hour
• Production Speed : Up to 200 books per hour
• Notching : Double pass
• Operation Modes: Pad, tape, cover
• Standard Features: Stand-by mode, LED display, error detection display

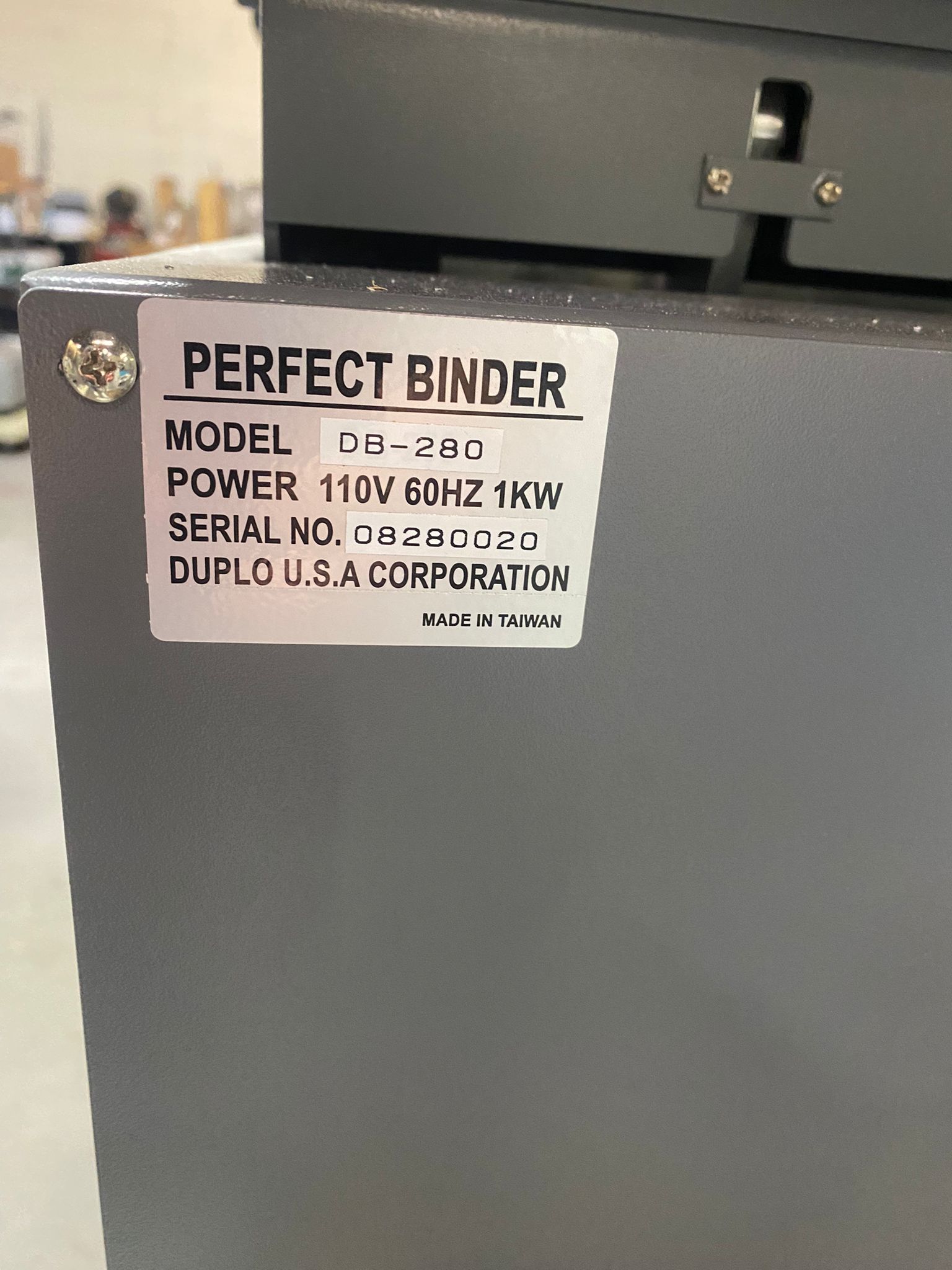

• Power Source: 110V, 60Hz / 1KW
• Dimensions (WxDxH) : 1,270 mm x 559 mm x 483 mm
• Weight: 120 kg
